보유기기 현황

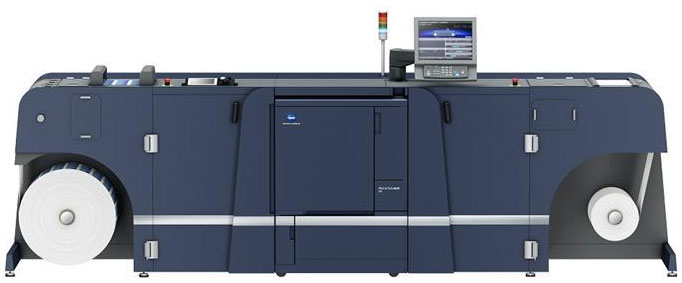

AccurioLabel 190 GM Edition
1. 제원
- Substrate Width : Max 350 mm
- Minimum Width : 150 mm
- Printing Width : Max 330 mm
- Print Repeat / Print Cylinder : 8"?24" (203.2?609.6 mm), Z64?Z192
- Die-Cutting Repeat : 11"?24" (279.4?609.6 mm), Z88?Z192
- Machine Speed : 10?200 m/min
- Unwind Reel Diameter : 1000 mm (40") ? max load 350 kg
- Rewind Reel Diameter : 1000 mm (40") ? max load 350 kg
- Waste Matrix Rewind Diameter : 700 mm (27.5")
- Unwind / Rewind Shaft Diameter : 3" (76 mm)
- Gear Pitch (Helical 1/8") : Z = 3.175 mm
- Plate Thickness : 1.14 mm
- Sticky Back Thickness : 0.38 mm
- Electrical Voltage : 380V (standard) ±10%, 3-phases, Neutral, Ground
- Frequency : 50/60Hz ±2%
- Electrical Equipment : According to EEC Regulations
- Colors : HONTEC Standard
- Environment Temperature : 10°C to 25°C
- Humidity : 30% to 80% (at 20°C)
- Compressed Air : 6 bar, non-lubricated, dehumidified, filtered air
- Printable Materials : Self-adhesive stock (paper, PET, BOPP, PVC), glossy paper (60?100g), unsupported film from 12μ (PVC, BOPP, PET, PE, PA), aluminum foil from 12μ, laminated tube up to 450μ, light cardboard (350 GSM)
